Projects
Vice Assembly Model
-
CAD modeling in SolidWorks of a working vice assembly
-
Modeled nine interlocking components to build the full product​
-
Utilized dimensioning, mating, threading and other features with the platform

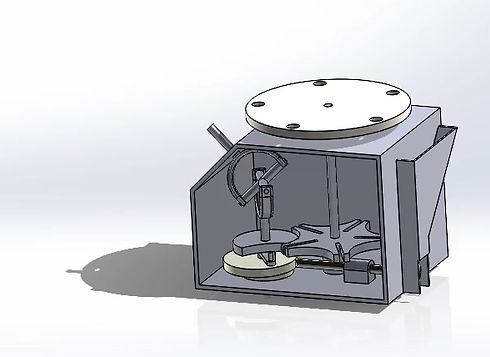

Bottling Station Assembly
-
SolidWorks model of a Bottling Station assembly
-
The video clip is a motion study showing all the components working together
-
Modeled displays working solution to transform constant rotational in one direction to step-wise rotational motion in a different plane
Three Part Shifter Fork Detailed Drawing
-
SolidWorks Part design for 3D component
-
Created a Detailed Drawing for a three part shifter
-
Tolerances were adjusted / calibrated to work within a larger assembly
-
Design includes datum features, geometric tolerances, and manufacturing notes including surface finish
Electric Seated Scooter Design
-
Designed a seated electric scooter with the capabilities to travel 26.36 mph and accelerate from 0-20 mph in 17 seconds
-

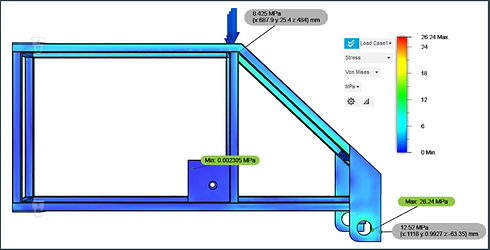

I ran a FEA on the overall frame, the bolts, and the weldments in areas of high stress
-
This FEA was analyzed with a general load case of a 200 pound person on the seat​
-
-
I ran a FEA on the scooter with a load case where the scooter hits a wall with the maximum frontal impact
-
This is the second picture​
-
Rocket Thrust Vector Control
-
Designing a thrust vector control system from the ground up that can dynamically stabilize a flight capable engine
-
This system will likely use actuators mounted to directly to the engine.
-
Towards the end of the year, we will test our system on a ground-based engine to show how our system will gimbal to all the necessary directions and speeds.
-
This project entails working alongside the Cal Poly Space Systems Club.
